CCS CHAdeMO EV Charger

Fast EV Charging station to charge all current and next generation vehicles with CCS, CHAdeMO and AC Type 2.

EVMS series（30KW-150KW）

50/150kW EV DC Quick Charger CCS, CHAdeMO

The EVMS-60 is a Fast Charging station able to charge all current and next generation vehicles with 50/60kW CCS, CHAdeMO and AC Type 2.
EVMS-150, a high power charger for E-Bus and Luxury EVs. It’s a Fast Charger to charge any CCS Compatible Bus or Vehicles with 150kW.
Application: highway rest stops, petrol stations, EV dealers, busy urban areas, etc.
Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes

High efficiency and energy saving

Modular structure, with higher reliability and flexibility;Efficiency ≥ 95%, low energy consumption;Noise is low and has little impact on the surrounding environment;

Flexible configuration

Flexible multi-protocol design: CCS 2, CHAdeMO GB/T and AC TYPY 2;Support two guns charge at the same time or in turn;Support customization to meet the diverse needs of different customers;

Intelligent interaction

supports multi language operation;Daylight readable touch screen display;Support OCPP1.6J

EVMS-60

Configuration: two DC guns charge at the same time or in turn
Capacity: 60KW
Constant power range: 400-1000VDC
Max. charge current: 150A
Size: 900*525*2000(W*D*H)mm (two guns) / 1000*525*2000(W*D*H)mm (three guns)

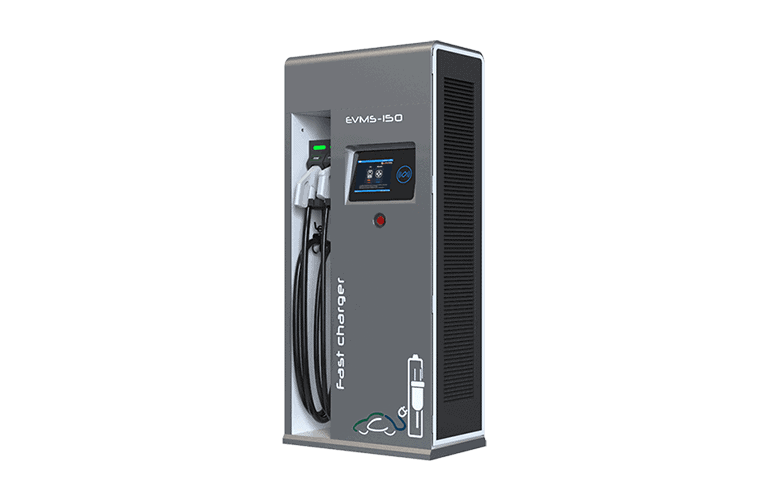

EVMS-150

Configuration: two DC guns charge at the same time or in turn
Capacity: 150KW
Constant power range: 400-1000VDC
Max. charge current: 375A
Size: 900*525*2000(W*D*H)mm (two guns) / 1000*525*2000(W*D*H)mm (three guns)

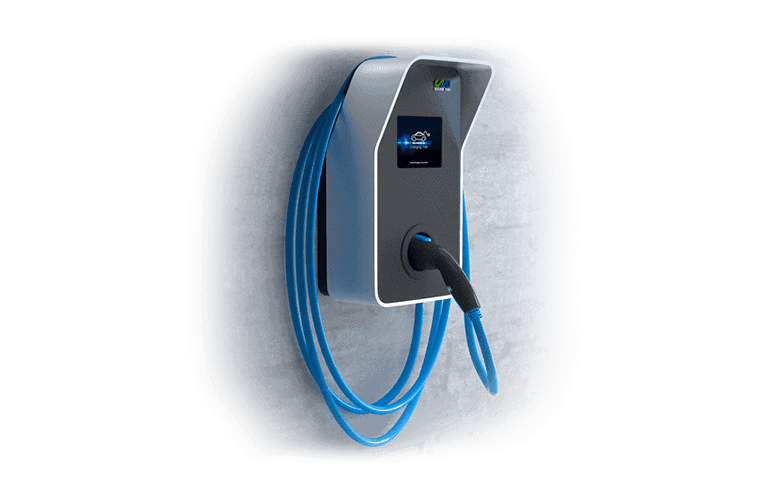

EVMS-30

Configuration: CCS
Capacity: 30KW
Installation: Wall-mounted
Constant power range: 300-500VDC&600-1000VDC
Max. charge current: 100A

Specification

Model/CapacityEVMS-30; 30KWEVMS-60; 60kW
EVMS-150; 150kW
AC inputRated voltage400VAC
Frequency50/60HZ
PF＞0.99
DC outputVoltage range150-1000VDC
AC outputRated voltage/400VAC
Nominal power/22KW/43KW
OthersEfficiency95%
Operation temperature-35ºC-60ºC(-20ºC～-35ºC，need heating)
　Relative humidity≤95%, non-condensing
Protection degreeIP54，IK10
Noise＜55dB
Compliance and safetyCE, EN61851, EN62196, DIN70121, ISO15118

SCU EV Charger at the World’s Largest Airport

Beijing Daxing International Airport,the world’s largest airport, is the first airport in the world with 100% coverage rate of charging supporting facilities and more than 10% of renewable energy. SCU won the bid for the second phase of the EV charger project in the flight area of Daxing Airport, and installed 70 units EV charger power stack and 160pcs charge post.

Learn more

SCU &China Potevio join hands for Public EV fast-charging Station in China

As the core EV charger supplier of China Potevio, Sicon Chat Union(SCU) has successively provided large quantities of DC fast chargers in full power ranges. For many years, both parties keeps maintaining close cooperation relationship, making full use of their respective product and R&D advantages, join together to achieve a win-win situation.

Learn more

SCU High Power Charging System Installed at Bus Station

SCU ultra fast chargers are ideal for guests staying from 10 minutes to one hour. After a quick stop and charge, ev-drivers can be on their way. SCU High Power Charging(HPC) deals with the fast charging technology, which currently provide the maximum charging power with up to 360 kW, it is ideal for bus stations, fuel stations, meeting venues or a roadside restaurant, or EVs that need to be charged quickly. The ultra fast charger is compatible with any electric vehicle with a DC fast-charge option.

Learn more

SCU DC fast charger station launched at Huanghua Harbor

Huanghua Harbor is located on the coast of the Bohai Sea in Huanghua City, Hebei Province. Coal is everywhere in the 20-square-kilometer port area. In September 2019, a special landscape appear in this dusty area. Sicon Chat Union(SCU) all-in-one type EV charges were installed, standing in rows to provide power guarantee for the pure EV fleets of the Harbor.

Learn more
