Flexible, reliable, low-cost power module for EV charging station.DPM series AC/DC Charging module is key power part of DC EV Charger, which converts AC to DC and then charge electric vehicles, providing reliable DC supply for equipment requires DC power.
DPM series(50-1000VDC)
“New energy electric vehicles have an urgent demand for high-power and fast charging. As the core component of the charging pile, DC charging module is the key to the stability and reliability of the whole charging station.The SCU DC fast charging module has high reliability, high availability and high maintainability, which can meet the voltage requirements of different battery packs, reduce the potential safety hazard and greatly save the operation and maintenance cost of life cycle.”
System adopts full digital DSP control technology, achieves pure digital control from input to output; adopts interlaced series resonance soft switch technology to reduce the tolerance of power devices.Wide range of input voltage, 260V~530V, input surge protection design.The monitor is equipped with standard CAN/RS485 communication interface, can easily exchange data with external devices.
Input THDI less than 3%, input power factor can reach 0.99, the efficiency can reach 95% and above.Ultra-wide range of output voltage, 150-1000Vdc / 200VDC-500Vdc /200VDC-750Vdc (adjustable), to meet various voltage demands of different battery packs.Compatible with GB/T, CCS 1, CCS 2, CHAdeMO
Input over voltage protection, under voltage alarming, output over current and short circuit protection functions. Low output DC ripple wave, has no influence on battery’s working lives. Can constitute parallel redundancy systems and has hot-swapped function, which improves the availability, reliability and maintainability of the system.

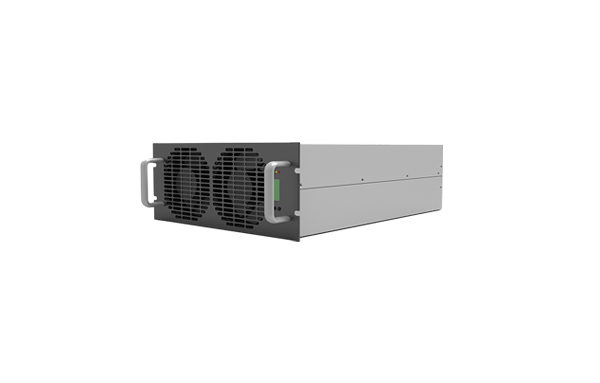

Capacity: 30kW
Output voltage range: 50-1000VDC
Constant power range: 300-500VDC&600-1000VDC
Size: 88*445*300(W*D*H)mm

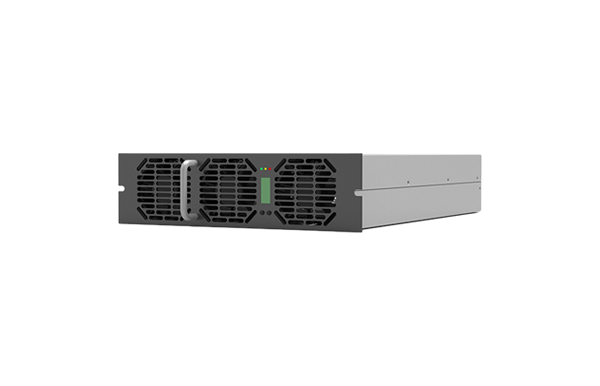

Capacity: 15kW
Output voltage range: 150-1000VDC
Type: Constant Current
Size: 220*500*88(W*D*H)mm
Capacity: 20kW
Output voltage range: 40-135VDC
Constant power range: 100-135VDC
Size: 220*470*126(W*D*H)mm
Model/Capacity | DPM1000/16(15KW);DPM-1000/30(30KW); | DPM-100/200(20KW); |
Input voltage | 380Vac3P3N | 380Vac3P3N |
Input frequency | 50/60HZ | 50/60HZ |
Input PF | >0.99 | >0.99 |
Efficiency | 96% | 95% |
Output voltage | 50VDC-1000VDC | 40VDC-135VDC |
Voltage range at constant power | 300-500VDC&600-1000VDC | 100VDC-135VDC |
Current stabilized accuracy | <0.5% | <0.5% |
Voltage stabilized accuracy | <0.5% | <0.5% |
Suitable for EV charger | GB/T , CCS, CHAdeMO | GB/T , CCS, CHAdeMO |
Cooling | Forced air cooling | Forced air cooling |
Operation temperature | -20℃~+60℃,derating to 60% rated power when the temperature is 50℃-60℃ | -20℃~+60℃,derating to 60% rated power when the temperature is 50℃-60℃ |
Relative humidity | 0~95%,40±2℃ non-condensing | 0~95%,40±2℃ non-condensing |
