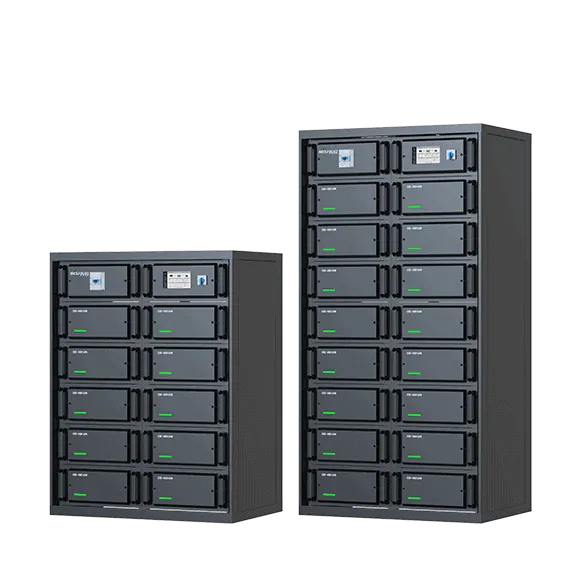

High power lithium ion battery provides long-lasting, efficient and controllable high-quality power!
The high power lithium battery with long cycle life and high energy density is selected as the High Energy
Density Lithium Ion Batteries, to provide stable, long-lasting power supply for UPS,EPS,PCS or other loads. With proven BMS triple level protection to ensure longer cycle life and reliability,high energy density lithium batteries can provide power for a longer period but with a low cost per kWh. High power li ion battery is really a good “marathon runner” in energy storage products.
The high power lithium battery has high energy density and can supply power continuously and stably for a long time;
Comprehensive intelligent temperature control improves system efficiency and stability and battery cycle life;
Low-thermal-runaway-rate LFP battery;
Triple-layered protection, more than 200 security designs
Multiple safety tests to deal with violent collision;
Multi-state monitoring and hierarchical actions to ensure solar battery energy storage system safety;
Active equalization to maximize system capacity;
Visual human-computer interaction interface;
CAN and RS485 communication;
Remote monitoring, equipment management, troubleshooting and data analysis;
System capacity: 160Ah
Rated power: 480/768kWh
weight: 800/1200kg
System capacity: 120Ah
Rated power: 480/768kWh
weight: 800/1200kg
System capacity: 280Ah
Rated power: 460/768kWh
weight: 1200/1900kg
| EFS480-120EⅡB | EFS768-120EⅡB | EFS480-280EⅡB | EFS768-280EⅡB |
| 10 battery pack+1 control module | 16 battery pack+1 control module | 12 battery pack+1 control module | 20 battery pack+1 control module |
| 1C | 1C | 0.5C | 0.5C |
| 1C | 1C | 0.5C | 0.5C |
| 120Ah | 120Ah | 280Ah | 280Ah |
| 57.6 | 92.16 | 129 | 215 |
| 480 | 768 | 460 | 768 |
| 375~547.5 | 600~876 | 360~525.6 | 600~876 |
| CAN | CAN/RS485 | CAN/RS485 | CAN/RS485 |
| Active equalization BMS | Active equalization BMS | Active equalization BMS | Active equalization BMS |
| 1000*650*1350 | 1000*650*2000 | 1000*700*2000 | 1400*700*2200 |
| 800 | 1200 | 1200 | 1900 |
| 25℃ 1C/1C 100%DOD EOL80% ≥5000times | 25℃ 1C/1C EOL80% ≥5000times | 25℃ 0.5C/0.5C EOL80% ≥3000times | 25℃ 0.5C/0.5C EOL80% ≥3000times |
High power lithium ion battery safety always comes first from initial modeling, design, to production, testing, and application.
Fully automated workshop, advanced management, quality product delivery experience.
Product test and quality control at each level to ensure higher reliability of the system.
The air supply duct is designed inside the module to ensure the uniformity of cells’ temperature to maintain good consistency.
Three-level architecture BMS design, adaptive equalization, equalization accuracy less than 2%, equalization capacity reaches
10% of rated output, and it always protects the safety of the battery system all the time.
