Modular UPS (Li-ion Batt)

In the IT world, data security needs the power supply protection. SCU can do it!

CMS series (30-900KVA)

Full Range Modular UPS Protect your Data Center Business

As a pioneer and leader of modular UPS technology, SCU offer our business partners the most flexiable and competitive modular UPS solution, with power modules 6kVA, 15kW, 30kW, 50kW and 75kW, and UPS systems 12~30kVA, 60kW~900kW, then 4unites parallel upto 3.6MW, and available with Lithium ion Batteries Solutions
SCU Uninterruptible Power Supply (UPS) have been protected client’s business over 20 years from small IT net work to 1MW to 100MW data centers.

Superior Reliability

Multi-level decentralized control technology;
Flexible redundancy: N+1,N+X, 2N
Physical isolation of cold and hot air ducts;
Support lithium ion battery access.

Excellent Energy Saving

96.5% efficiency at online double Conversion mode;
99% efficiency at IECO mode;
Output PF 1, high load capacity;
Module sleep function ensures the power module always works in the best efficiency state;

High Availability

Generator Compatible;
Modular, standardized design;
Pay as grow, reduce the total cost of ownership (TCO)
Hot swap, quick repair and expansion;
Small footprint, high power density;

30-120kW UPS system with 15kW power module

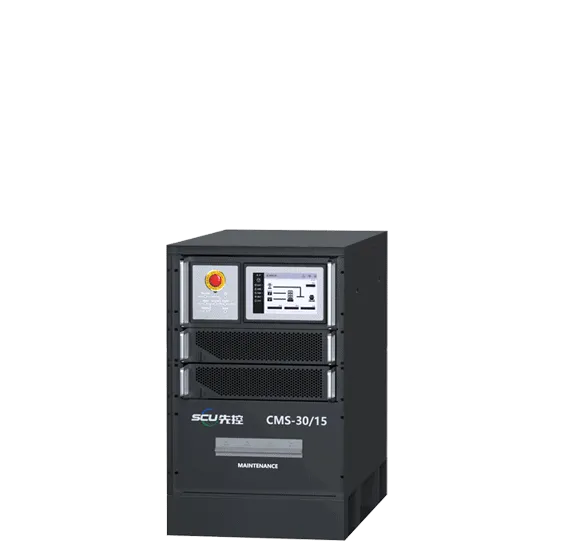

CMS-30/15

Max. power: 30kW
Power module: 15kW
442*800*662(W*D*H)mm

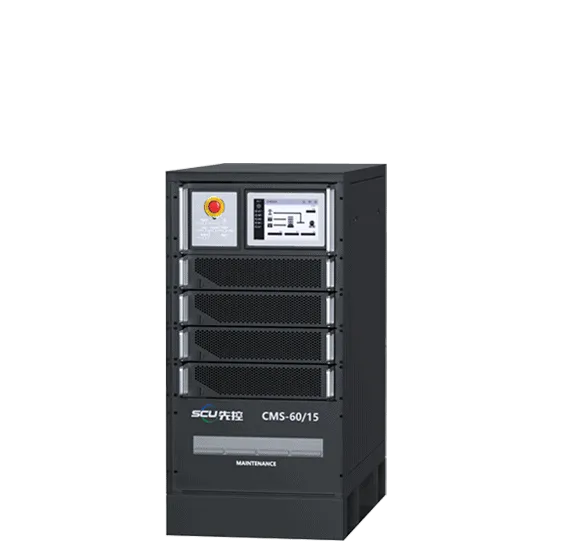

CMS-60/15

Max. power: 60kW
Power module: 15kW
442*800*840(W*D*H)mm

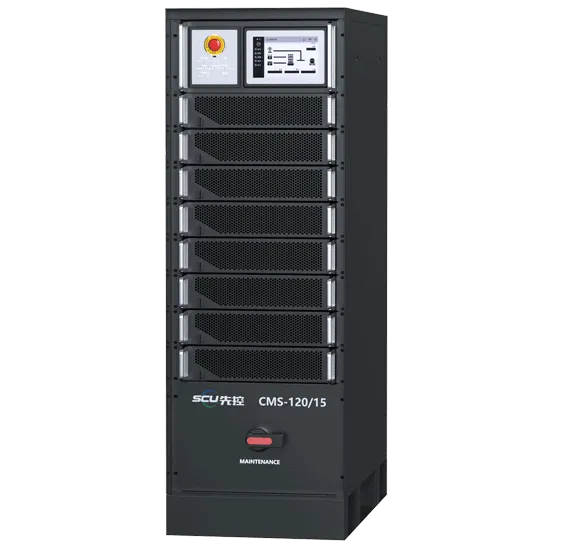

CMS-120/15

Max. power: 120kW
Power module: 15kW
442*800*1195(W*D*H)mm

Specification

Model / capacityCMS-30/15(30kVA); CMS-60/15(60kVA); CMS-120/15(120 KVA);
Power moduleModel / capacityCM15;15kVA/15kW
Mains inputInput mode3Ph+N+PE
Rated input voltage380V/220V AC、400V/230V   AC、415V/240V AC
Input frequency50Hz±10%、60Hz±10%
Input PF≥ 0.99
DC inputRated input voltage±240V DC
Input voltage range±160V~±330V
AC outputOutput PF1
Output voltage380V/220V AC、400V/230V   AC、415V/240V AC
OverloadOperate 10mins with 125% load
Efficiency≥96%
Communication functionModbus、SNMP、dry contact

90-240kW UPS system with 30kW power module

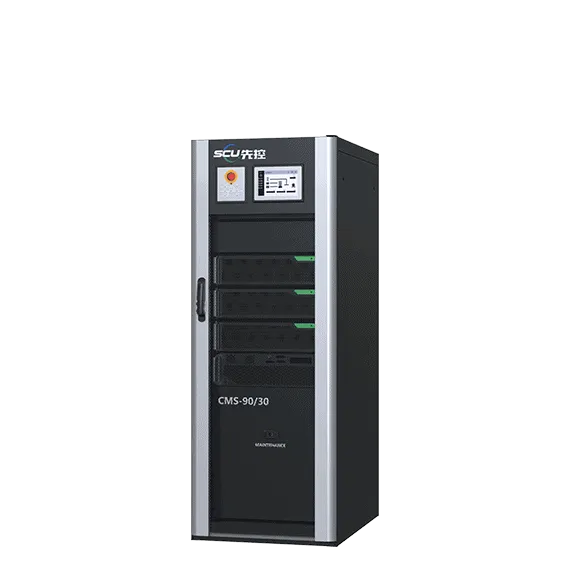

CMS-90/30

Max. power: 90kW
Power module: 30kW
600*850*1600(W*D*H)mm

CMS-150/30

Max. power: 150kW
Power module: 30kW
600*850*1600(W*D*H)mm

CMS-240/30

Max. power: 240kW
Power module: 30kW
600*850*2000(W*D*H)mm

Specification

Model / capacityCMS-90/30(90KVA); CMS-150/30(150KVA); CMS-240/30(240KVA);
Power moduleModel / capacityCM30;30kVA/30kW
Mains inputInput mode3Ph+N+PE
Rated input voltage380V/220V AC、400V/230V   AC、415V/240V AC
Input frequency50Hz±10%、60Hz±10%
Input PF≥ 0.99
DC inputRated input voltage±240V DC
Input voltage range±160V~±330V
AC outputOutput PF1
Output voltage380V/220V AC、400V/230V   AC、415V/240V AC
OverloadOperate 10mins with 125% load
Efficiency≥96%
Communication functionModbus、SNMP、dry contact

200-500kW UPS system with 50kW power module

CMS-200(300)/50

Max. power: 200(300)kW
Power module: 50kW
800*850*2000(W*D*H)mm

CMS-400/50

Max. power: 400kW
Power module: 50kW
1400*850*2000(W*D*H)mm

CMS-500/50

Max. power: 500kW
Power module: 50kW
1400*850*2000(W*D*H)mm

Specification

Model / capacityCMS-200/50(200KVA); CMS-300/50(300KVA); CMS-400/50(400KVA); CMS-500/50(500KVA);
Power moduleModel / capacityCM50;50kVA/50kW
Mains inputInput mode3Ph+N+PE
Rated input voltage380/400/415 Vac, 3P4W (+PE) TN/TT power distribution system
Input frequency50/60 Hz ( range: 40 – 70 Hz )
Input PF≥ 0.99
DC inputRated input voltage±240V DC
Input voltage range±160V~±330V
AC outputOutput PF1
Output voltage380/400/415 Vac, 3P4W (+PE) (share N with Bypass)
OverloadOperate 10mins with 125% load
Efficiency≥96%
Communication functionModbus,SNMP,dry contact

450-900kW UPS system with 75kW power module

CMS-450/75

Max. power: 450kW
Power module: 75kW
800*1000*2000(W*D*H)mm

CMS-600/75

Max. power: 600kW
Power module: 75kW
1200*1000*2000(W*D*H)mm

CMS-900/75

Max. power: 900kW
Power module: 75kW
1800*1000*2000(W*D*H)mm

Specification

Model / capacityCMS-450/75(450KVA); CMS-600/75(600KVA); CMS-900/75(900KVA);
Power moduleModel / capacityCM75;75kVA/75kW
Mains inputInput mode3Ph+N+PE
Rated input voltage380/400/415 Vac, 3P4W (+PE) TN/TT power distribution system
Input frequency50/60 Hz ( range: 40 – 70 Hz )
Input PF≥ 0.99
DC inputRated input voltage±240V DC
Input voltage range±160V~±330V
AC outputOutput PF1
Output voltage380/400/415 Vac, 3P4W (+PE) (share N with Bypass)
OverloadOperate 10mins with 125% load
Efficiency≥96%
Communication functionModbus、SNMP、dry contact

12-36KVA rack-mount UPS with 6KVA power module

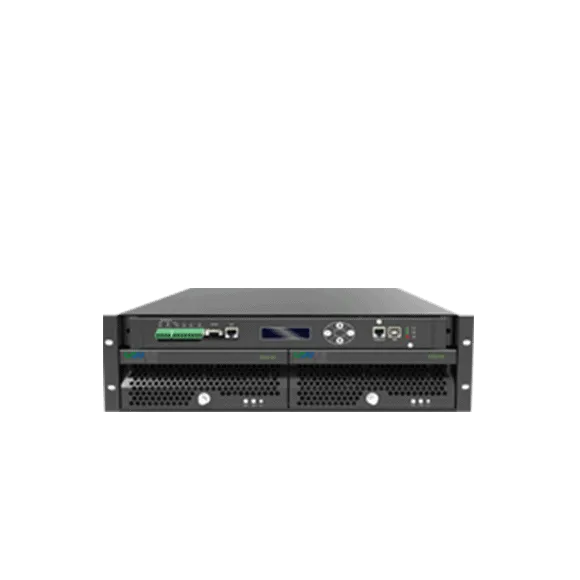

ERMS-12

Max. power: 12KVA
Power module: 6KVA
480*600*132mm(W*D*H)mm

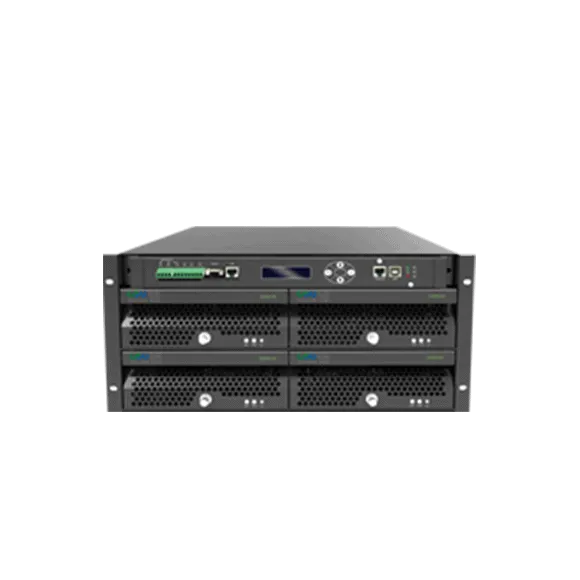

ERMS-24

Max. power:24KVA
Power module: 6KVA
480*600*220mm(W*D*H)mm

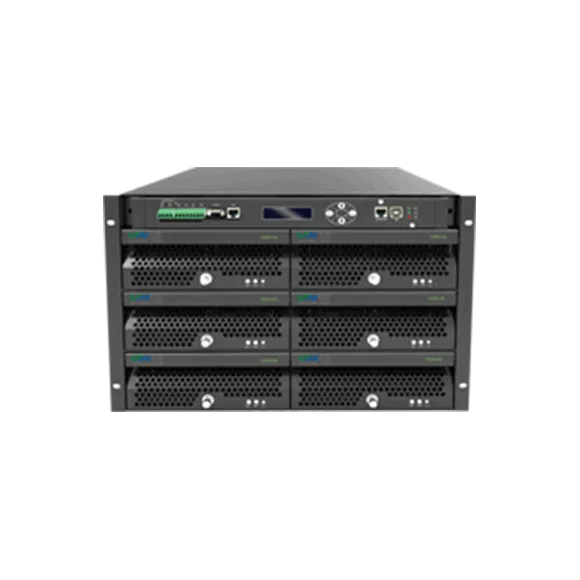

ERMS-36

Max. power: 36KVA
Power module: 6KVA
480*600*310mm(W*D*H)mm

Specification

Model / capacityERMS-12(12kVA); ERMS-24(24kVA);ERMS-36(36kVA)
Power moduleModel / capacityERM-06(6kVA/6kW)
Mains inputInput mode1Ph+N+PE1Ph+N+PE、3Ph+N+PE
Rated input voltage220V/230V/240V220V/230V/240V 、380V/400V/415V
Input frequency50Hz±10%、60Hz±10%
Input PF≥0.99
DC inputRated input voltage±120V DC、±240V DC
AC outputInput voltage range0.9
Output PF220V/230V/240V220V/230V/240V、380V/400V/415V
Output voltageOperate 10mins with 125% load
Overload≥94%
EfficiencyModbus、SNMP、dry contact

SCU Micro-module data center project in the 4th Hospital of Hebei province

Two micro-module data centers are provided to the hospital , by integrating closed hot and cold aisles, modular UPS CMS-150kVA, servers, air conditioning systems, power distribution systems, fire control and lighting systems, and environmental monitoring systems , effectively avoided unnecessary waste, increased the reliability of the system, speed up the construction of the computer room, and effectively reduced the implementation cost.

Learn more

IDC Micro-module data center project for China Unicom

In 2017, SCU provided China Unicom Hebei Branch a new updated micro-module solution with an integrated, standard, optimal, intelligent, and highly adaptable infrastructure environment for Hebei Unicom’s IDC computer room, to create a new high-density low-power modular data center.

Learn more

China National Project: South-to-North Water Diversion

SCU was great honored to take part in this world famous project, provided 120 sets of integrated cabinet data center for the project.

Learn more

SCU CMS Lithium Modular UPS Installed at Shanghai Jiaotong University Super-computing Center

Since 2018, SCU has established good cooperation with Shanghai Jiaotong University to provide CMS series modular UPS and UPS dedicated lithium battery systems for its super-computing center. We strictly control the whole process of system design, construction, testing, acceptance, operation and maintenance, providing high-quality power protection for the super-computing center.

Learn more

Data Center in Shanghai Guardhouse

The Shanghai Guardhouse is built for retired people who served for the country and disabled soldiers. SCU provided 26 sets of integrated intelligent cabinets to solve the problem of data center room construction in Shanghai Guardhouse.

Learn more

Micro-module project in Beijing,Tongzhou Police Station

SCU provided modular data center solution to meet the requirements of rapid deployment, high reliability, and green energy saving in the Police station.

Learn more

SCU 89sets UPS used in Huitian Cloud Data Center

In the face of massive data services, the stable operation of data centers requires high-quality, high-stability power support. SCU UPS power supply system has created a new generation of green, environmentally friendly, high-efficiency and energy-saving uninterruptible power supply systems for the data center of Huitian Cloud Industrial Park, helping the safe operation of the data center.

Learn more

Safe Beijing IDC

The IDC project of Beijing Public Security Bureau aims to promote “Internet + services”, and the information computer room has become the key to data operation and application. Relying on forward-looking technology and high-quality products, Sicon has become a long-term partner of Beijing Public Security Bureau, providing a complete UPS power system protection program for key equipment such as the city’s monitoring, storage and command system services.

Learn more

Beijing Tongzhou Public Security Bureau “Xueliang Project”

Beijing Tongzhou “Xueliang Project” focuses on the urban planning and positioning requirements of Tongzhou District, closely integrates with reality, and adopts new technologies to create a smart security system for Beijing’s urban sub-center. Sicon provided a modular UPS power supply and power distribution system for the project. It has the characteristics of high power density, reliability, efficiency, intelligence and flexibility to meet the needs of different loads and provide a strong guarantee for the “Xueliang Project”.

Learn more

Guizhou Xiangming IDC Data Center

Xiangming IDC data center provides hosting services for private enterprises. The information equipment running in the data center must work uninterrupted 7*24 hours. In the event of a power outage and other emergencies, it will bring huge losses. SCU provides high-power modular UPS for it, and adopts modular dual-bus operation to provide uninterrupted power protection.

Learn more

China Telecom Group

In the computer room projects of China Telecom Group’s Beijing, Shanghai, Guangzhou, Zhejiang and other municipal branches, Sicon UPS power supply system successively provided more than 300 sets of modular UPS systems, with power coverage from 100KVA-800KVA, and the longest running time has been 15 In 2015, it provided safe and reliable power guarantee.

Learn more

China Mobile Group

Sicon UPS has won the favor of China Mobile Group for its high efficiency, energy saving, and environmental protection characteristics. It has provided more than 200 sets of UPS power supply products in the computer room construction projects of China Mobile Communications Group’s branches in Guangzhou, Henan, Chongqing, Jiangsu, Shandong, Tianjin, etc. , The power coverage is from 100KVA-900KVA, successfully ensuring the smooth and stable operation of the computer room.

Learn more

Wuhan Railway Station

Wuhan Railway Station is a large-scale comprehensive transportation hub integrating various transportation. In October 2009, Sicon provided multiple sets of CMS series UPS power supply of medium and high-power UPS systems, intelligent power protection, redundant design, and decentralized control. , No operation bottleneck, multiple operation modes, high efficiency and energy saving, safer and more reliable, providing a stable power environment for Wuhan Railway Station.

Learn more

NRTA Radio and TV digital Project

In June 2009, Sicon modular UPS obtained the “NRTA of Radio, Film and Television”. In January 2011, Sicon provided 274 sets of modular UPS for radio and TV digitalization projects, which greatly improved the reliability of equipment and has been operating stably for many years. , Provide comprehensive and reliable UPS power supply guarantee, which is highly recognized and praised by Radio and TV.

Learn more

Chongqing Jiangbei International Airport

Chongqing Jiangbei International Airport is one of the eight major regional hub airports in China. From 2008 to 2014, Sicon provided multiple CMS series modular UPS power supply system products with different power ranges, as well as supporting batteries, battery cabinets, transformer cabinets and other related facilities. Ensure the stable and uninterrupted operation of the terminal center machine room and other key loads.

Learn more

SCU Online UPS provided “zero error” power guarantee for APEC

In 2014, the 22nd Asia-Pacific Economic Cooperation (APEC) Leaders’ Informal Meeting was successfully held in Beijing. With efficient and reliable power products and technologies, Sicon Chat Union(SCU) became the power security service partner for “2014 APEC Conference Water Cube International Feast “, provided reliable power solutions for multiple power systems and contributed to the reliable power supply for this summit.

Learn more

15-year Power Protection for Guangzhou Metro by SCU UPS

Uninterrupted Power Supply(UPS) is the most widely used power energy product in the rail transit industry. With forward-looking innovative technology, SCU UPS has been applied to metro projects in multiple provinces and cities including Guangzhou, Nanjing, Tianjin etc.. In 2006, SCU UPS was initially installed in Guangzhou Metro Line 5, and until 2020, successively more than 200 sets of UPS and power distribution equipment have been installed in Guangzhou Metro, 15 years of stable operation with zero error.

Learn more

Astronomy Case-SCU Modular UPS Applied to FAST, 500-meter Aperture Spherical Telescope

As an excellent provider of power supply and distribution system solutions for scientific data centers, the CMS series high-end modular UPS power supply system for FAST has been completed and put into use, which meets the high-standard power demand for stable operation of FAST and ensures astronomical observations The accuracy and stability.

Learn more

SCU industrial UPS with SMIC project

SMIC is one of the world’s leading integrated circuit chip foundry companies. The company focus on strengthening its production and operation capabilities. The increasing number of electronic equipment is increasingly demanding the power grid. Sicon industrial UPS has super load capacity, higher protection level and multiple operation modes, and is more sturdy and durable. It is favored and recognized by SMIC. Since 2012, the two parties have established long-term cooperation.

Learn more

2008 Beijing Olympic, SCU UPS is on site

On 2008, Beijing was full of brilliance and passion. The successful holding of the Olympic Games demonstrated to the world the improvement of national strength and the cohesion of the nation. Countless unknown figures outside the stadium are servicing the Olympics, and tens of thousands of power grid employees are fighting on the front line of the Olympics to provide reliable and high-quality power supply. Sicon UPS is fortunate to witness and participate in this grand event and contribute its own strength.

Learn more

SCU UPS, the strong power supply of Beidou 3 ground receiving system

On June 23, 2020, Xichang Satellite Launch Center announced that Beidou-3’s last global networking satellite has successfully entered orbit, marking the completion of Beidou satellite navigation system’s global coverage. Sicon customized the CMS modular UPS power supply system for the Beidou 3 ground receiving system, which provides an ideal power supply guarantee for the smooth operation of the system.

Learn more
